Xcountry Shock Numbers (mm) |
|
4/23/13 |
|
Matt Snook |
|
|
|
|
|
|
|
|
|
|
|
Wheel Travel (WT, spec) |
Stroke |
Length |
|
(Length is eye center to center,
mount length) |
|
STOCK: |
|
Travel/Stroke ratio = 3.4:1 |
|
09 Xcountry |
165 |
48 |
320* |
|
*Nominal lollipop adjustment, can go
+- 10mm |
|
07 Xcountry |
210 |
61 |
333* |
|
*Nominal lollipop adjustment, can go
+- 10mm |
|
07 Xmoto |
245 |
|
07 XChallenge |
270 |
|
345* |
|
*Measured. (But it sags a lot more
than Ohlins.) |
|
|
|
|
Ohlins S46HR1C1: |
|
BM 633 (Xmoto) |
247** |
72 |
343 |
|
**Travel would be 37 more than 07
stock XCountry (11*3.4) |
|
BM 636 (Xchallenge) |
305** |
89 |
360 |
|
**Travel would be 95 more than 07
stock XCountry (28*3.4) |
|
|
Options: Get Ohlins with length of 333 which would
have stroke of 61 and match the Xcountry: |
|
or Use BM
636 (easier to get than BM 633) and add shims to reduce stroke (and length)
by 28mm, resulting in: |
|
|
210*** |
61 |
332 |
|
***Calculated |
|
|
Xmoto shock
was on closeout for $495, some people have installed it into an Xchallenge to
lower seat height and travel |
|
*********************** |
|
I ended up ordering a Wilbers 642-0837 shock in black with the following CUSTOM specs, and the optional
ride height adjustment of +0 / -10mm: |
|
|
|
Wilbers 642 standard (not mine) |
192 |
56 |
333 |
|
***WT is calculated. Length adjustable to: +- 5mm |
|
Wilbers 642 custom (mine) |
224 |
65 |
346 |
|
***WT is calculated. Length adjustable to: + 0/-10mm |
|
|
^^^ |
Note: Sag %-ages use this
number for the denominator in calculations below: |
|
Price with
discount was $899 + $100 for optional ride height (length) adjustment. No tax
or shipping from beemershop.com. |
|
Shock damping controls: Top (+) is
Compression/low speed, below it (-) is Compression/high speed. At bottom of shock is Rebound. |
|
-To close, turn clockwise. (For Rebound -
this is viewed from underneath shock looking up). |
|
-First close all the way (max damping),
then open the desired # of clicks (range is 0-23 clicks). |
|
|
Note: Seat height is to
a point on the front edge, so relative only numbers. |
|
-Factory setting is 12 clicks on each of
Comp/Hi, Comp/Lo and Rebound. |
|
|
|
Spring is marked 160-165 meaning: Spring
rate=160 N/mm, and 165 uncompressed spring length. |
|
|
|
-Preload factory setting is 9mm, the amount
the spring is compressed (length = 156mm=165-9). In the pic you can see the
gap between the 2 nuts and the top of the shock aluminum cone measures
10.8mm. (Later I would measure this shock length to be 157 so the preload is
closer to 8.3mm in my measurements, which will calibrate to the preload
settings I make later on, below). |
|
|
Sag
measurements (mm): |
|
Length adjustable to: + 0/-10mm |
|
|
|
Raw Measurements |
|
Sag |
Sag %-ages |
^^^ |
|
|
A (Full Extension) |
B (Unloaded,
Vertical) |
C (Loaded, Rider w/o gear (unless*)) |
|
A-B (Unloaded or
Static Sag) |
A-C (Loaded or
Race Sag) |
Unloaded
% (A-B)/WT |
Loaded % (A-C)/WT |
Seat "Height" (Unloaded) |
|
|
BMW Sachs (OEM) |
|
7/12/10
- Before oil leak. With Gear On* |
617.5 |
610 |
565 |
|
7.5 |
52.5 |
4% |
25% |
|
8/24/10
- Now leaks oil at top, preload broken - knob spins freely and does not
click. To top of swingarm). With Gear On* |
572 |
544 |
493 |
|
28 |
79 |
13% |
38% |
857 (33.7in) |
|
|
Wilbers 642 |

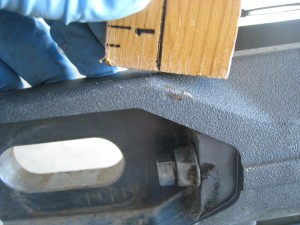

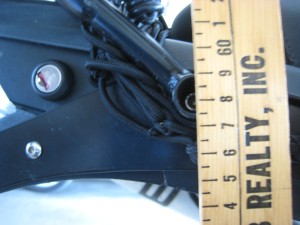

Note: All measurements
on 8/24/10 - 7/21/11 or later have the yardstick placed on the top of
swingarm near the rounded edge (see photo below) on right side. Then measure
up to the bottom edge of the rearmost black metal mount tube of the BMW rear
tail rack. Measurment in 2012 is similar. |
|
Set to factory settings: 9mm preload on
spring (length = 156mm=165-9). Length adj set to 0 (range is +0/-10mm). Very
tall seat - tippy toes! |
|
8/25/10:
Rider: 196 lbs No gear on! |
598 |
572 |
536 |
|
26 |
62 |
12% |
28% |
875 (34.4in) |
590 on sidestand |
|
8/25/10:
Rider: 217lbs With Gear On* |
598 |
572 |
530 |
|
26 |
68 |
12% |
30% |
|
|
|
8/26: I rode on Storm Mtn and experimented with Compression
(Hi/Lo Speed) & Rebound. Factory
set to 12/12 & 12, but it needs a LOT of rebound. Fully open (23/23 &
24) did not work and bottomed some. Also tried 0/0 & 0, a bit harsher but
ok for jumps. Ended with 5/5 & 5.
Maybe set C-Hi a bit more than C-Lo for off road, like 5/10 & 5? |
|
|
Changed Length Adj set to -9mm (could not
get it to -10mm) Better ride height
for street! |
|
|
|
|
|
|
8/30/10:
Rider: 196 lbs No gear on! |
567 |
541 |
505 |
|
26 |
62 |
12% |
28% |
856 (33.7in) |
558 on sidestand |
|
Tried again,
seems like minimal sag, but same! |
|
|
|
|
|
|
|
7/21/11:
Rider: 194 lbs No gear on! |
665 |
638 |
602 |
|
27 |
63 |
12% |
28% |
|
|
|
|
|
|
|
|
|
|
|
6/2012
Experiments with stiffer springs: |
|
Side note: the full range of swingarm, with
the shock removed and using tie-downs to lift it, I measured as a travel of 300mm… Now this was a crude
measurement and probably does not match the BMW measurements, but note that
the stock XChallenge air is 270mm travel & Ohlins BM636 is 305! |
|
170 N/m spring: |
|
Ted Porter at Beemershop installed a stiff
spring is marked 170-165 meaning: Spring rate=170 N/mm, and 165 uncompressed spring length. |
|
-Ted set preload to 8mm, (amount the spring
is compressed (length = 157mm=165-8). I checked and to me it looks to be
about 7.8mm. Spring length
measures 6 3/16" or 157.2mm. |
|
-I set the length adjuster to maybe -7mm or
so, at 0 it was too tall really. I don't think it affects the sag. Neither
did the compression and rebound clicks, I checked and no difference in sag. |
6/19/12:
Rider: 195 lbs No gear on! 7.8mm
preload |
558 |
529 |
489 |
|
29 |
69 |
13% |
31% |
|
Worse than before with 160Nm spring! |
|
6/19/12:
Rider: 233 = 195 lbs + 38 lb concrete block on pillion. 7.8mm preload |
558 |
519 |
481 |
|
39 |
77 |
17% |
34% |
|
Worse than before with 160Nm spring! |
|
Using the included Wilbers apanner wrench, I set preload to
10.6mm, (amount the spring is compressed (length = 165 - 154.4mm=10.6).
Spring length measures 6 5/64" or 154.4mm. When you tighten the lower collar nut, it spins the entire lower part of the
shock including the eye due to the binding pressure of the spring against the
lower eye mount. You don't have to loosen the top collar locking nut. Do a
full rotation to align the lower shock spacer offset on the same side. Every full turn of the collar nut will move
one thread pitch which is right near 1/16" of an inch (or 1.58mm). I did 2 full turns or decreased the shock
length (and increased the preload) it by around 3 mm. Now preload is about 10.6 mm. |
6/20/12:
Rider: 195 lbs No gear on! 10.6mm
preload |
569 |
548 |
507 |
|
21 |
62 |
9% |
28% |
|
Hmmm worse than with
160Nm spring! Gap at top of spring nuts is now 13.1mm giving 10.6mm preload. Spring measured exactly
6 5/64" or 154.4 mm |
|
|
|
180 N/m spring: |
|
Ted Porter at Beemershop installed a stiff
spring is marked 180-165 meaning: Spring rate=180 N/mm, and 165 uncompressed spring length. |
|
-I reset preload to 9.0mm. Spring length measures 6 9/64" or 156.0mm. |
|
7/7/12:
Rider: 195 lbs No gear on! 9mm preload |
603 |
579 |
543 |
|
24 |
60 |
11% |
27% |
|
I set preload: Gap at
top of spring nuts is now 11.5mm giving 9mm of preload. Spring measured exactly 6 9/64" or 156.0 mm |
7/7/12:
Rider: 233 = 195 lbs + 38 lb concrete block on pillion. 9mm preload |
603 |
566 |
530 |
|
37 |
73 |
17% |
33% |
|
Same setup, added block for weight. |
|
YACUGAR Shock 3/2013
Sag measurements (mm): |
|
|
|
Yacugar F-RS specs: |
227 |
66 |
345 |
|
***WT is calculated. Length adjustable to: + 10/-0mm |
|
|
|
|
|
|
|
Raw Measurements |
|
Sag |
Sag %-ages |
^^^ |
|
|
A (Full Extension) |
B (Unloaded,
Vertical) |
C (Loaded, Rider w/o gear (unless*)) |
|
A-B (Unloaded or
Static Sag) |
A-C (Loaded or
Race Sag) |
Unloaded
% (A-B)/WT |
Loaded % (A-C)/WT |
Seat "Height" (Unloaded) |
|
3/31/13 - Yacugar F-RS shock 23.14.120 with 66mm stroke and
mount length 345mm +10 - 0, with 1101 progressive spring (180mm spring
length, 147 - 227 N/mm dual spring rate). Mount length is 10mm longer than I
asked for! Preload from factory was
5.4mm (180-174.6mm) as I measured it, but they said it was 4mm preload. Sag
measured with shock at shortest length (345mm). And stroke that I used in
these calculations is 66mm stroke, so 227mm wheel travel, (technically 1mm
longer than Wilbers at 224mm travel). |
|
Initial
setup as shipped: Rider: 203 lbs No Gear On! * |
672 |
631 |
587 |
|
41 |
85 |
18% |
37% |
|
Initial
setup as shipped: Rider: 241 lbs = 203 + 38 lb concrete block on pillion. |
672 |
617 |
573 |
|
55 |
99 |
24% |
44% |
|
|
|
|
|
4/8/13
- Increased Preload by 1.8 turns (=1.8 * 1.7mm = 3.1mm). So now is maybe
8.5mm (5.4 +3.1mm)? |
|
Measured pitch of
spanner nut: 3 turns to be 0.205" which is 1.7mm/turn (measured with
calipers). |
|
Preload=8.5mm
Rider: 203 lbs No Gear On! * |
672 |
640 |
595 |
|
32 |
77 |
14% |
34% |
|
|
4/12/13
- Increased Preload by 2.0 turns (=2 * 1.7mm = 3.4mm). So now is maybe 11.9mm
(8.5 +3.4mm)? |
|
|
|
Preload=11.9mm
Rider: 203 lbs No Gear On! * |
696 |
672 |
628 |
|
24 |
68 |
11% |
30% |
864 or 34.0" |
|
Same
except Rider: 241 lbs = 203 + 38 lb concrete block on pillion |
696 |
660 |
617 |
|
36 |
79 |
16% |
35% |
|
|
4/17
Swapped old worn Mefo rear tire and wheel for new Dunlop D606 which is
exactly 2" more in diameter |
This raised seat height by 1.0"
!!! |
|
886 or 34.9" |
|
|
Same
preload except: Fully packed Great Basin bag (and small dry bag) is on
pillion. Also tank bag but No rider gear or number plate bag. Ready for Utah
trip. |
703 |
666 |
629 |
|
37 |
74 |
16% |
33% |
875 or 34.45" |
Ground Clearance (to oil drain
plug) is 9.9" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
